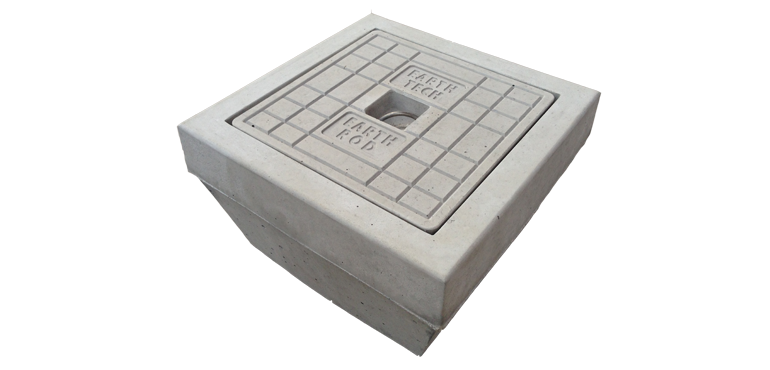

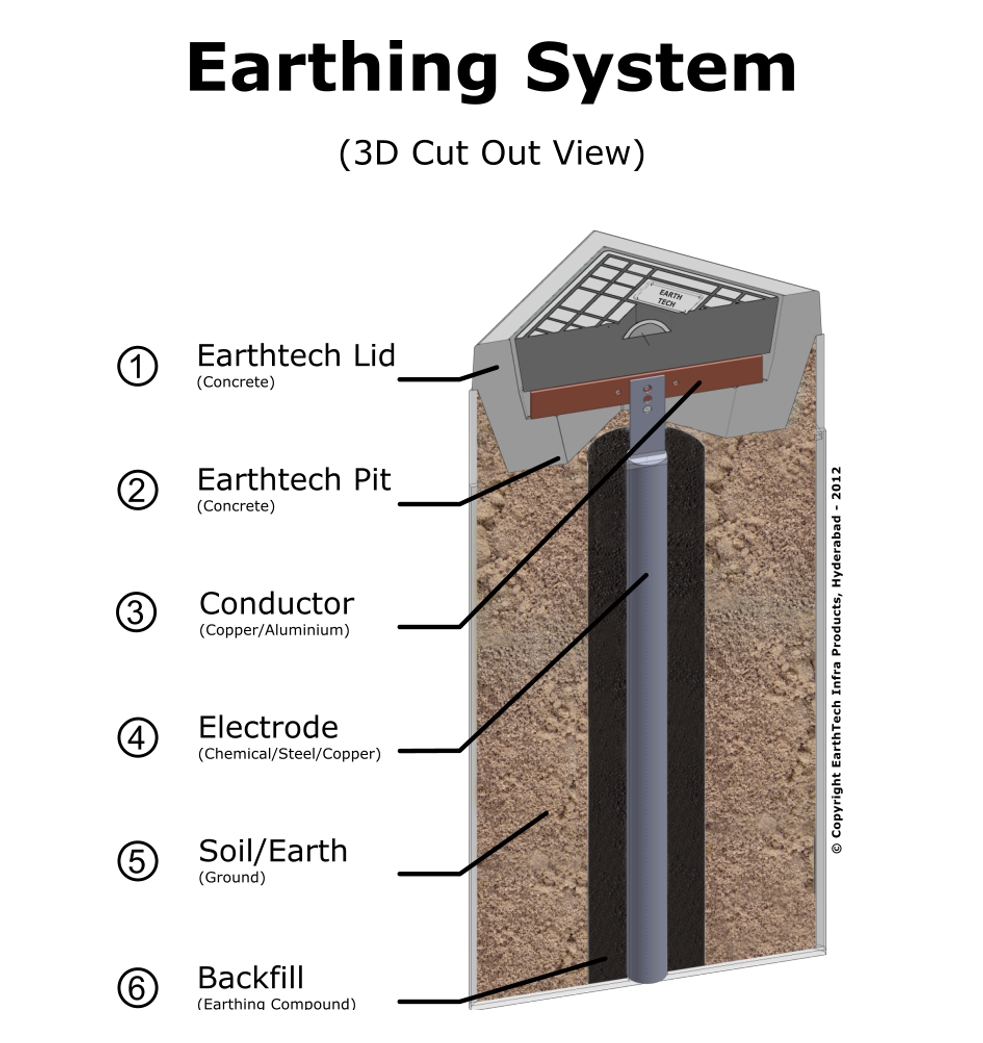

Concrete earth pits are used in grounding, earthing and lightening protection applications and form the ground level support structure for the earthing electrode (rod) and diagonal conductor, and provide an aesthetic top cover to the whole system.
Adopted to modern earthing techniques, this pit is suitable for maintenance free chemical/backfill earthing systems and can be used with steel, stainless steel, copper and copper clad electrodes.
Made from a custom concrete mix incorporating a stainless steel hook in the lid, this product is very pleasing to the eye and results in a uniform looking cover to the underground earthing system.
Compliance:
Our earth pit is compliant with the following standards
BS EN 50164-5:2009
IEC 62561-5:2011
|
Parameter |
Specifications (Nominal) |
|
Material |
Concrete with Stainless Steel Lifting Hook (SS-304) |
|
Dimensions |
320 mm (W) x 320 mm (L) x 192 mm (H) |
|
Weight |
30 Kg. |
|
Load Capacity |
5,000 Kg. |
|
Construction |
With diagonal slot to accommodate conductor |
|
Set |
Consists of two pieces – one pit and one lid |
